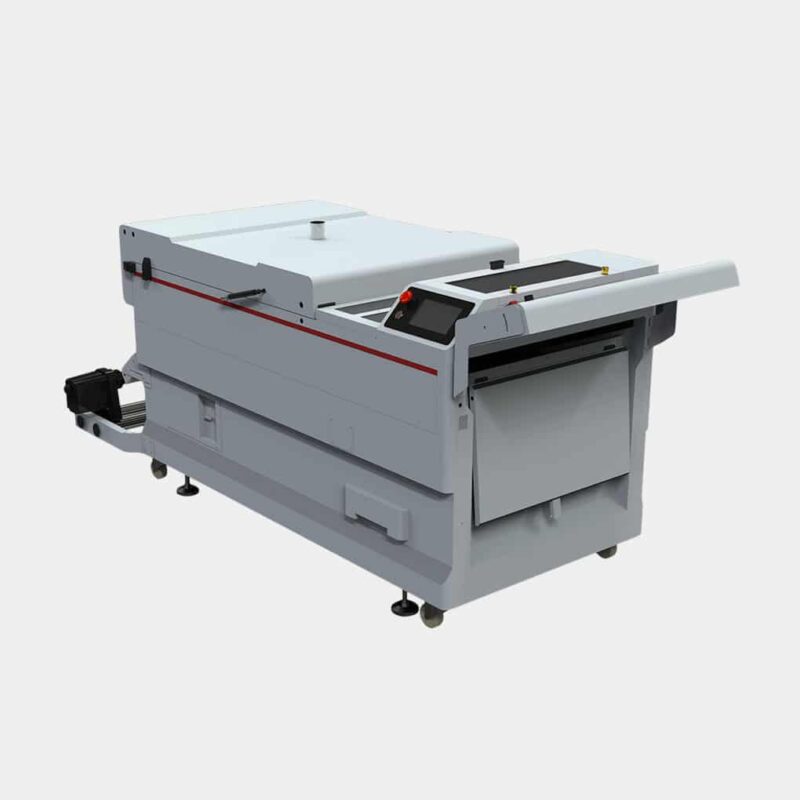

Spartan Pro 4 Head isolated on a white background.

Spartan 24″ Pro Automatic 4-Head DTF Powder Shaker

$7,295.00

This all-in-one DTF powder shaker evenly spreads, then melts the needed amount of adhesive material directly onto your printed image, saving time, effort, and cost. The vacuum absorption conveying platform secures the printing material to avoid bulging, run-offs, and media waste.

485 lbs (220 kg)
94.1 x 36.3 x 39.1 in (2391 x 921 x 992 mm)
Automatic Powder Recycling
Inferred Drying and Heating

SKU DTF-24PROAPS4H Categories Equipment, Shakers

New automatic powder recycle function is more convenient and labor saving
Longer folding dryer is more energy efficient
Compact size/small footprint
Touch screen control panel
Infrared drying and heating improves and protects color reproduction.
Manual/automatic switchable dusting and one-click automatic cleaning of the powder box

Maximum Shake Powder Width: 600 mm (23.6 in)
Functions: Shake powder control, dusting control, PID setting of curing temperature
Heating Element: 8-Piece Quartz Infrared Heat Drying Tube
Rewinding Function: Automatic Induction Rewinding
Heating and Drying Mode: Front guide plate heating, upper drying curing
Cooling Mode: 4-fan Air Cooling (Single Row)
Machine Size: 94.1 x 36.3 x 39.1 in (2391 x 921 x 992 mm)
Weight: 485 lbs (220 k g)
Packaging Size: 76.8 x 44.1 x 43.8 in (1950 x 1120 x 1113 mm)
Gross Weight: 639.3 lbs (290 kg)
Powder Spreading Structure: The motor drives the brush to rotate the hot melt powder out of the powder box.
Powder Shaking Device: The motor drives the powder shaking lever to beat the film and clean up excess hot melt powder.
Automatic Powder Recycle: There are 1-5 gears to choose from, and the 3rd gear is used by default, which can meet most printing speeds.
Powder Box Cleaning Function: Press and hold for 5 seconds to start the cleaning function.
Powder Spreading Structure: The door opens on the bottom of the powder box to release hot melt powder out of the powder box in a timed fashion and is recycled by the vacuum.
Powder Shaking Device: A motor drives the powder shaking flapper to beat the film and clean up excess hot melt powder off the film, applying powder only where the image has been printed.

Working Power Supply: AC 220V, 50 hz/60 hz, 1 Phase
Current: 30A, 6500W

Spartan 24″ Pro Automatic 4-Head DTF Powder Shaker
