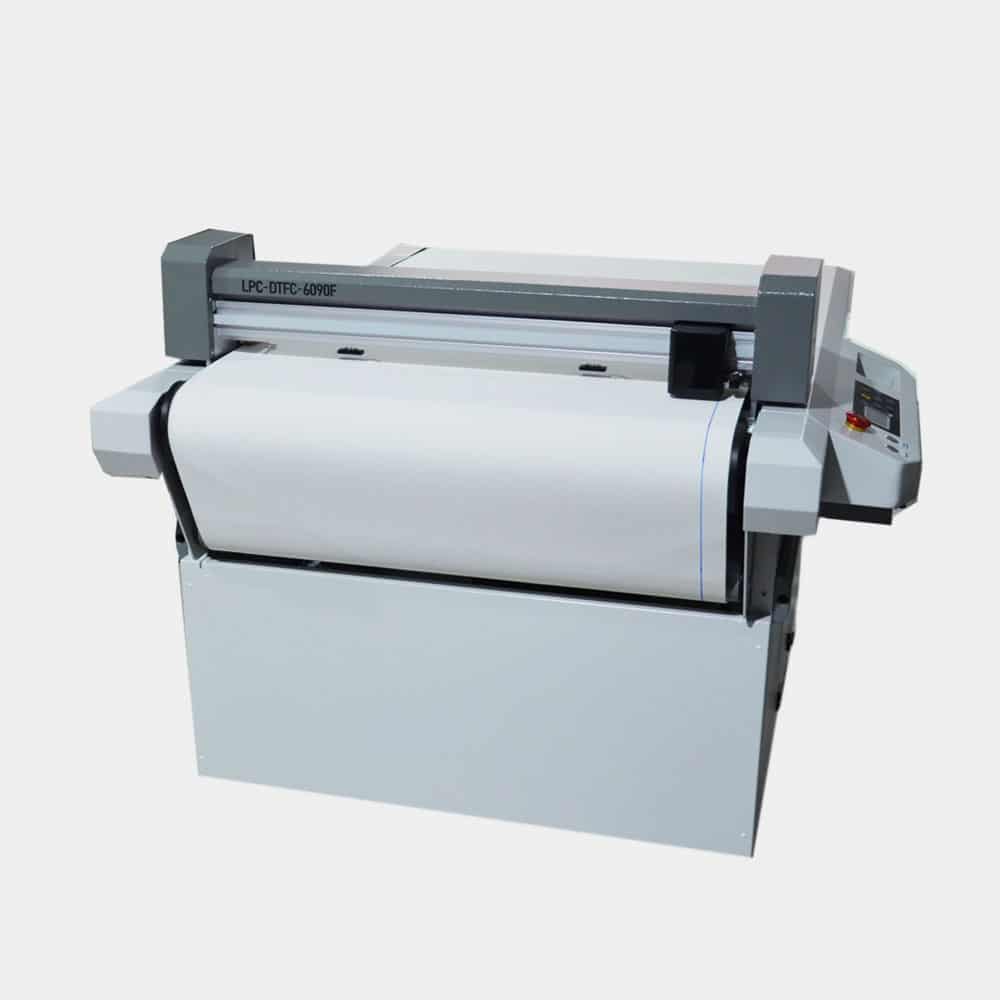

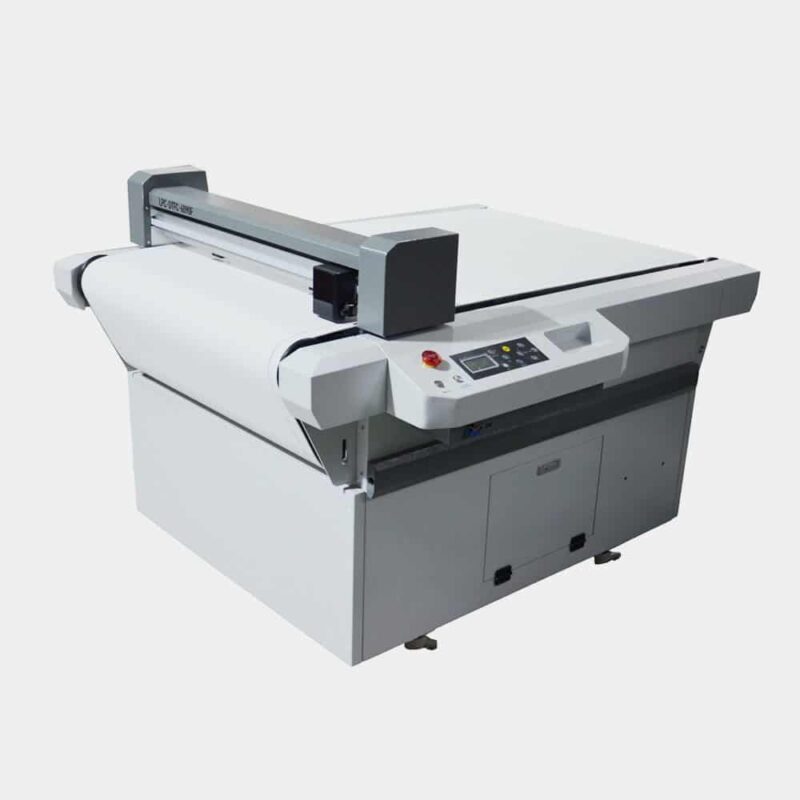

Flatbed DTF Cutter isolated on a white background.

24″ Roll Feed Flatbed Cutter for DTF Printing

$12,999.00

Maximize your production efficiency with this flatbed roll CNC cutter. Ideal for custom DTF heat transfers, this cutter effortlessly transforms screen and digitally-printed items into individual pieces. Load a roll of transfers, input your files via a flash drive or direct PC connection, and watch as the machine produces a precise contour cut. It works seamlessly with Digital Factory for easy crop mark application on any gang sheet.

419 lbs (190 kg)
60 x 44 x 41 in (1520 x 1120 x 1030 mm)
Precise and Versatile
User Friendly

SKU DTFC-6090 Categories Equipment, Printers

Auto Fed Flatbed Design: Ensures smooth and efficient feeding of materials for uninterrupted operation
User-Friendly Interface: Simple installation and intuitive one-key operation for enhanced accessibility
Precision Cutting: Capable of achieving precise cuts for DTF printing film, enhancing overall workflow efficiency
Versatile Application: Ideal for DTF and heat transfer apparel industries, catering to diverse production needs
High Operational Efficiency: Streamlined performance, making it an indispensable tool for cutting DTF films

Power Input: AC 110V, 60 Hz
Power Consumption: 2.2 kw, 20A
Max Cutting Size: 24 x 35 in (600 x 900 mm)
Material Thickness: 0.05-1.5 mm
Max Cutting Speed: 800 mm/s
Cutting Pressure: 600 G
Software Resolution: 0.025 mm
Mechanical Resolution: 0.0125 mm
Cutting Pressure: Adjustable per 1 Gram
Minimum Character Size: 1-2 mm
Interface: USB 2.0 U Disk
Method to Fix Media: Vacuum Table
Cutting Force Setup: Adjustable Every 1 G
Cutter Blade Diameters: Φ2.0mm
Cutter Blade Angles: 30°, 45°, 60°
Dotted Lines Cutting: Yes
Drive: AC Servo
OS: Win 10 / 8 / 7 / XP
Memory Buffer: 2MB
CAD/CAM Software: Windows Driver, SignWorkPro, CADtoPlotpro
Compatible Software: Cadlink, AutoCAD, CorelDRAW, CALCA DTF Fairy RIP
File Format: DXF
Port-In Standard: USB, RS-232
Registration Marks: Recognition CCD Camera
Cutter Holder: 1
Roll Media Bracket: Yes

1 x User Manual
2 x Blade Holder
6 x Blade
1 x Allen wrench
1 x Power Cable
1 x USB Cable
1 x U Disk
1 x SignWorkPro
1 x Fan with Silencer
